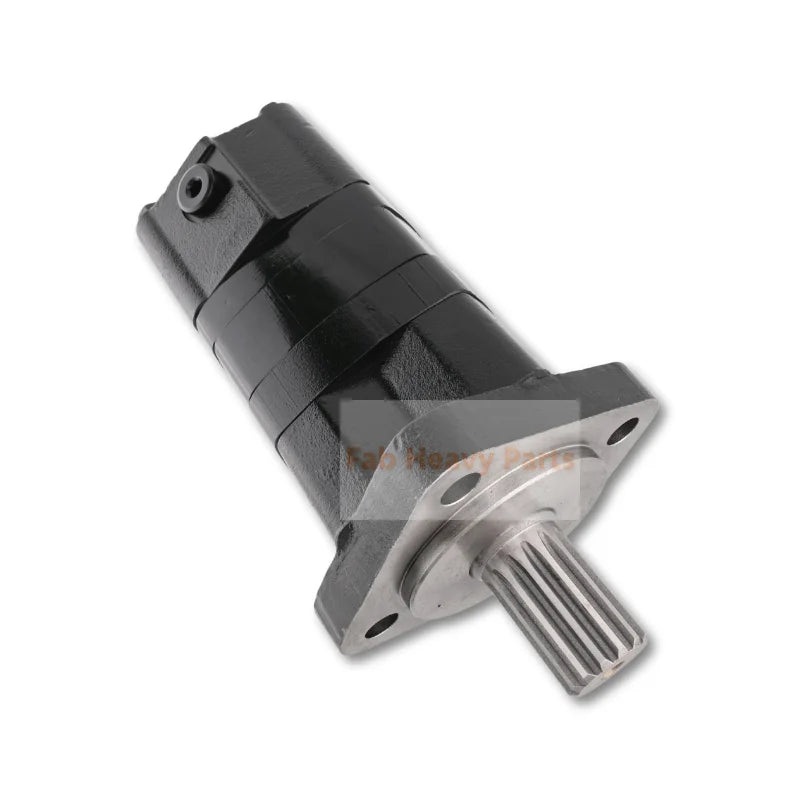

16mm 3/8” Hydraulic Obrital Motor OMM32-151G0006 Replaces Danfoss

Replace Part number: BMM-32-MAE, OMM32-151G0006, OMM32151G0006, 151G0006

Condition:new, replacement

Specification:
Shaft (mm): 16
Main Port Thread Size: 3/8”
Motor size: 32
Geometric displacement( cm^3[in]): 31.6[1.93]
Max speed cont: 630 rpm
Max speed int: 800 rpm
Max torque cont(Nm[lbf in]): 40[350]
Max torque int(Nm[lbf in]): 57[500]
Max output power cont(kW[hp]): 2, 4[3, 2]
Max output power int(kW[hp]): 3, 2[4.3]
Max pressure drop cont(bar[psi]): 100[1450]
Max pressure drop int(bar[psi]): 140[2030]
Max pressure drop peak(bar[psi]): 160[2320]
Max oil flow cont(l/min[gpm]): 20[5.3]
Max oil flow int(l/min[gpm]): 25[6.6]
Max starting pressure with unloaded shaft(bar[psi]): 4[60]
Min starting torque at max press drop cont(Nm[lbf in]): 34[300]
Min starting torque at max press drop int(Nm[lbf in]): 48[425]
Max inlet pressure cont(bar[psi]): 140[2030]
Max inlet pressure int(bar[psi]): 175[2540]
Max inlet pressure peak(bar[psi]): 225[3260]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 225[3260]

Application:
Fit for Danfoss

*Leadtime3-5workdays
