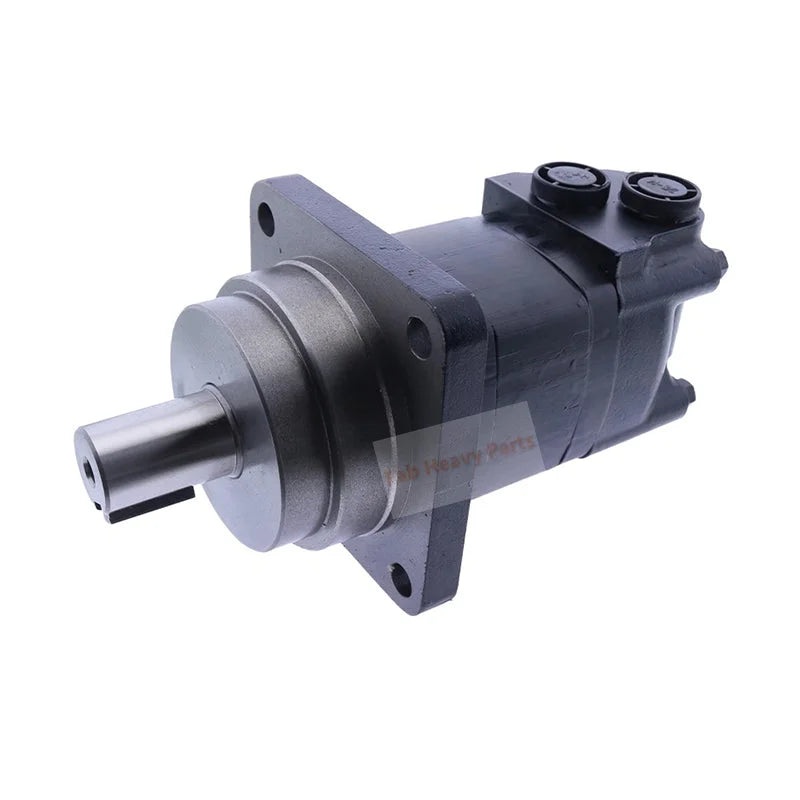

50mm G1 BSP Hydraulic Orbital Motor 151B3104 OMV800-151B3104 Replaces Danfoss

Replace Part number: 151B3104, OMV800-151B3104, 151B-3104, OMV800151B3104

Condition:new, replacement

Specification:
Cylindrical output shaft 50mm with G1 BSP port
OMV 800 Low Speed High Torque motor, Geometric Displacement 801.8 cm3
Motor size: 800
Geometric displacement( cm^3[in]): 801, 8[48.93]
Max speed cont: 250 rpm
Max speed int: 300 rpm
Max torque cont(Nm[lbf in]): 1880[16640]
Max torque int(Nm[lbf in]): 2110[18680]
Max output power cont(kW[hp]): 42, 5[57.0]
Max output power int(kW[hp]): 48, 0[64.4]
Max pressure drop cont(bar[psi]): 160[2320]
Max pressure drop int(bar[psi]): 180[2610]
Max pressure drop peak(bar[psi]): 210[3050]
Max oil flow cont(l/min[gpm]): 200[52.8]
Max oil flow int(l/min[gpm]): 240[63.4]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 1510[13360]
Min starting torque at max press drop int(Nm[lbf in]): 1700[15050]
Max inlet pressure cont(bar[psi]): 210[3050]
Max inlet pressure int(bar[psi]): 250[3630]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]

Application:
Fit for Danfoss

*Leadtime3-5workdays
